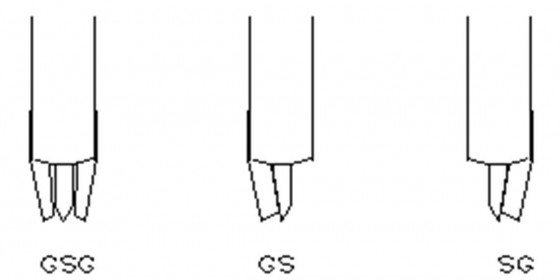

1.GGB 67A-GS-150-DP
2.GGB 67A-SG-150-DP
3.GGB 67A-GSG-150-DP

Features

    Coplanar probe tips
    Any pitch from 50 to 1250 microns
    Durable
    DC to 67 GHz
    Insertion loss less than 1.1db
    Return loss greater than 14db
    Measurement repeatability -80db
    Individually spring loaded contacts
    BeCu or Tungsten tips available
    Variety of Footprints
    Patented coaxial design
    Available in thirteen styles
    Custom configurations available

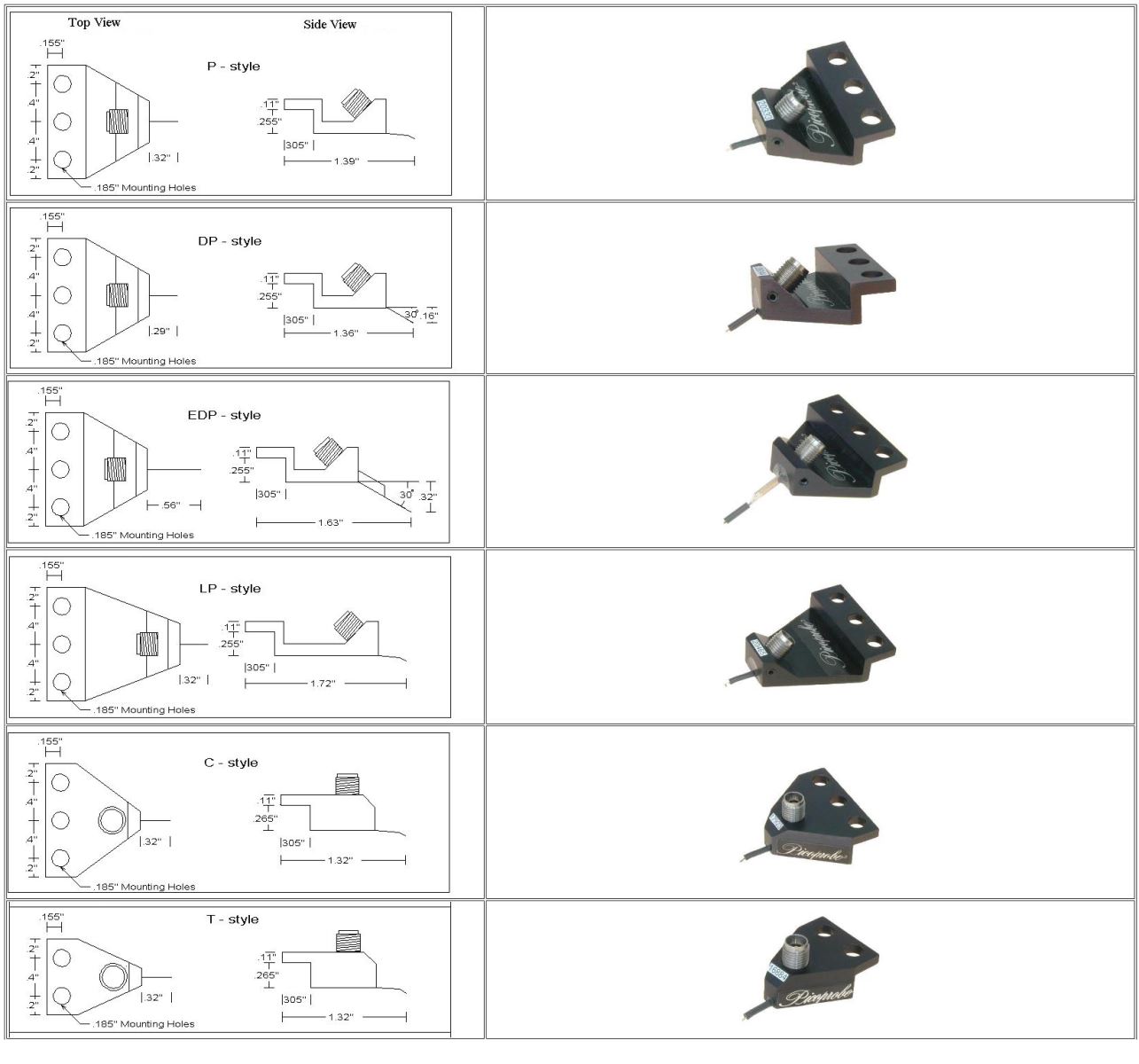

Mounting Style: T, C, GR, P, DP, EDP, LP, Q, F, S, DS, VP, or RVP
